2012 Minipan Flat bread line

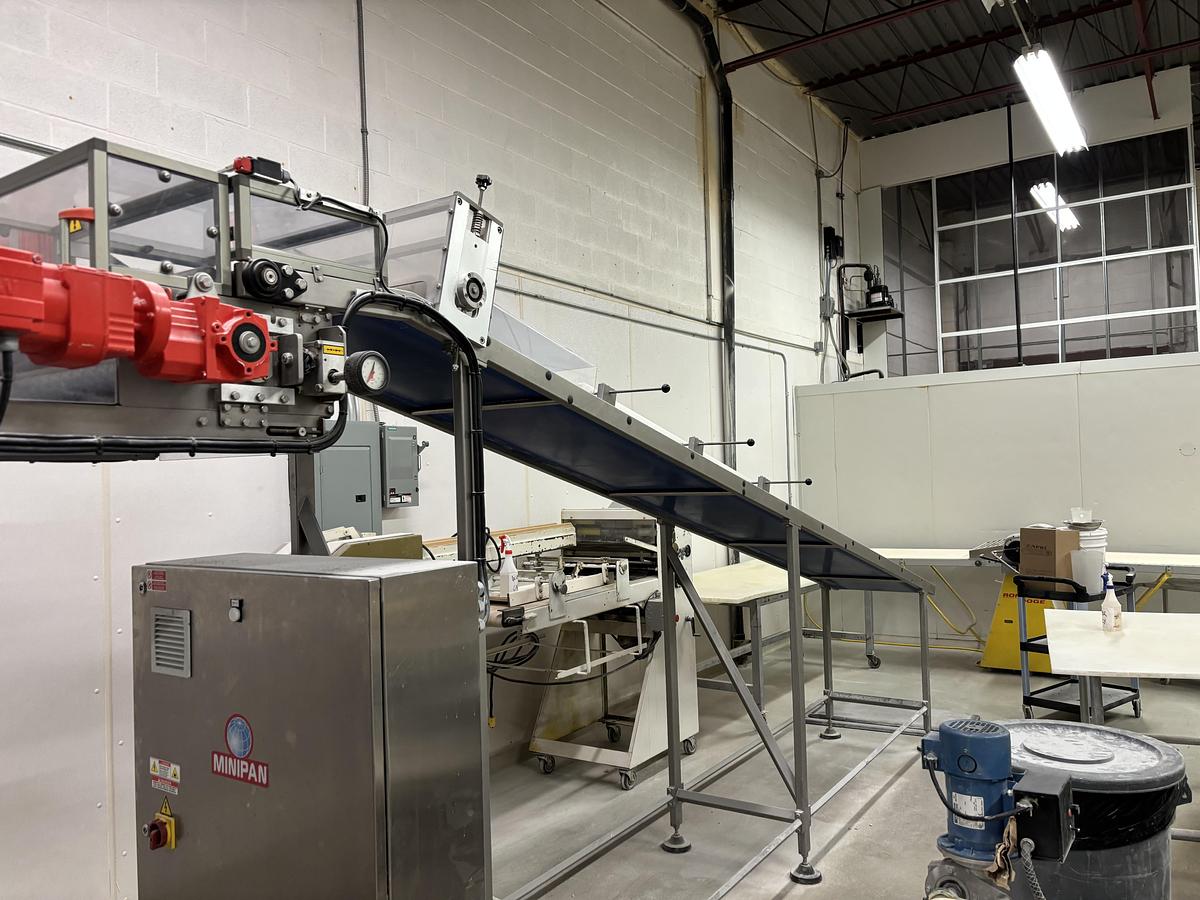

Ascending dough-feed conveyor belt

dough containment guides

polycarbonate safety guard at crushing-roller inlet

crushing roller and related drive unit

drive unit for ascending conveyor

drive unit for lower roller – Laminator 1

electrical control panel for the lamination line

feed conveyor for Laminator 2

drive unit for Laminator 2 feed conveyor

drive unit for lower roller – Laminator 2

forming-unit feed conveyor

tray magazine

pneumatic tray-loading system

tray-presence sensor during loading

head assembly, front view: preparatory rollers, extrusion drawer

head assembly, rear view: lower roller, extrusion drawer

drive unit for forming-unit feed conveyor

drive unit for lower roller – head assembly

drive unit for extrusion drawer

spring-loaded spreader

adjustment knobs for spring-loaded spreader

dough-perforating unit

adjustment knob for dough-perforating unit

handwheel for preparatory-roller adjustment – head assembly

drive unit for upper roller – head assembly

drive unit for spring-loaded spreader

adjustment knob for spreader

glazing unit

drive unit for upper glazing roller

conveyor belt under glazing unit

drive unit for lower roller

drive unit for brush roller

handwheel for glazing-unit height adjustment

drive unit for conveyor under glazing unit

spice dispenser: spice hopper, dispensing conveyor

drive unit for spice agitator

drive unit for conveyor under dispenser

spice-recovery conveyor

drive unit for spice-recovery conveyor

discharge conveyor

cutting unit

drive unit for cutting unit

handwheel for discharge-conveyor height adjustment

drive unit for discharge conveyor

drive unit for spice-dispensing conveyor

tray outlet

drive unit for tray-pulling chain

breadstick-machine electrical panel

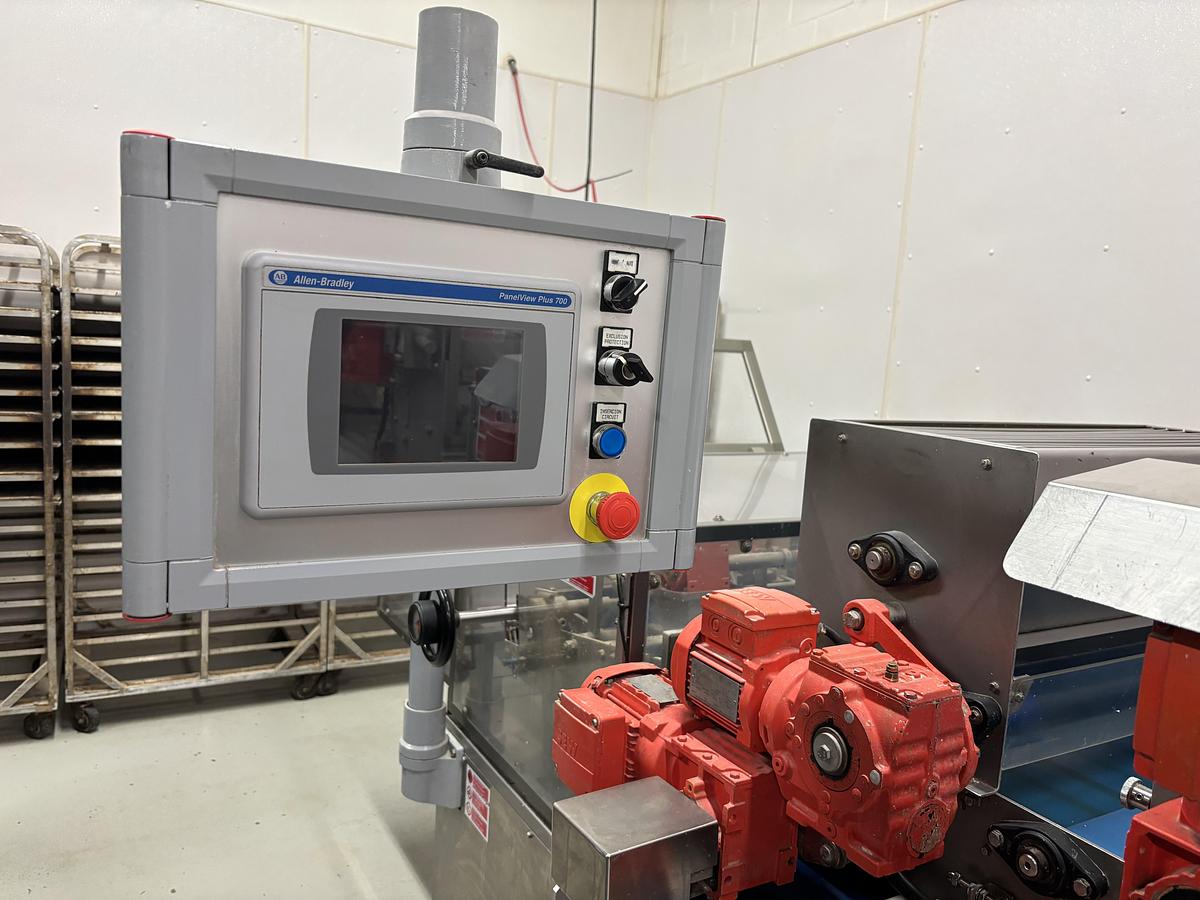

control panel with touchscreen

emergency stop button on forming-unit feed conveyor
