I & G S.r.l.s. pasta press

TECHNICAL DESCRIPTION – PRODUCTION LINE AND CONTINUOUS DRYER EC300

Production capacity: 300–500 kg/h

Water inlet: 100 L/h

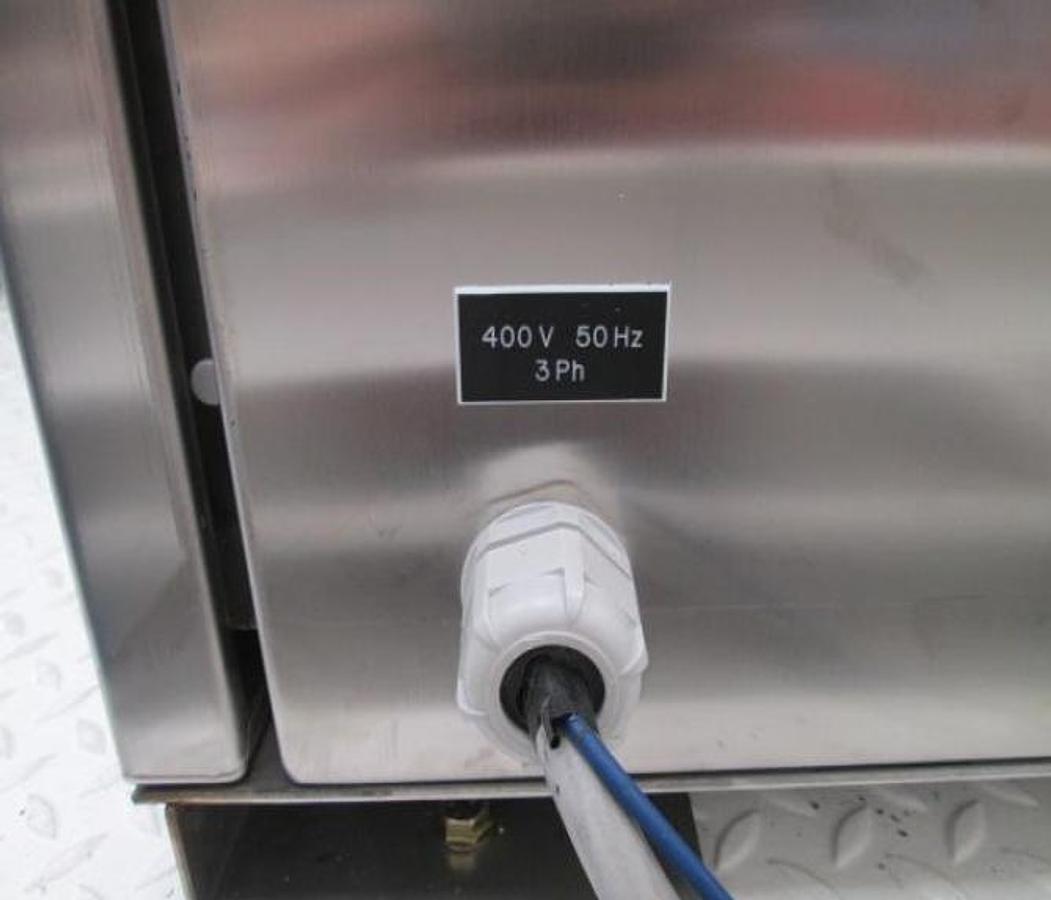

Power supply: 400 V, 50 Hz

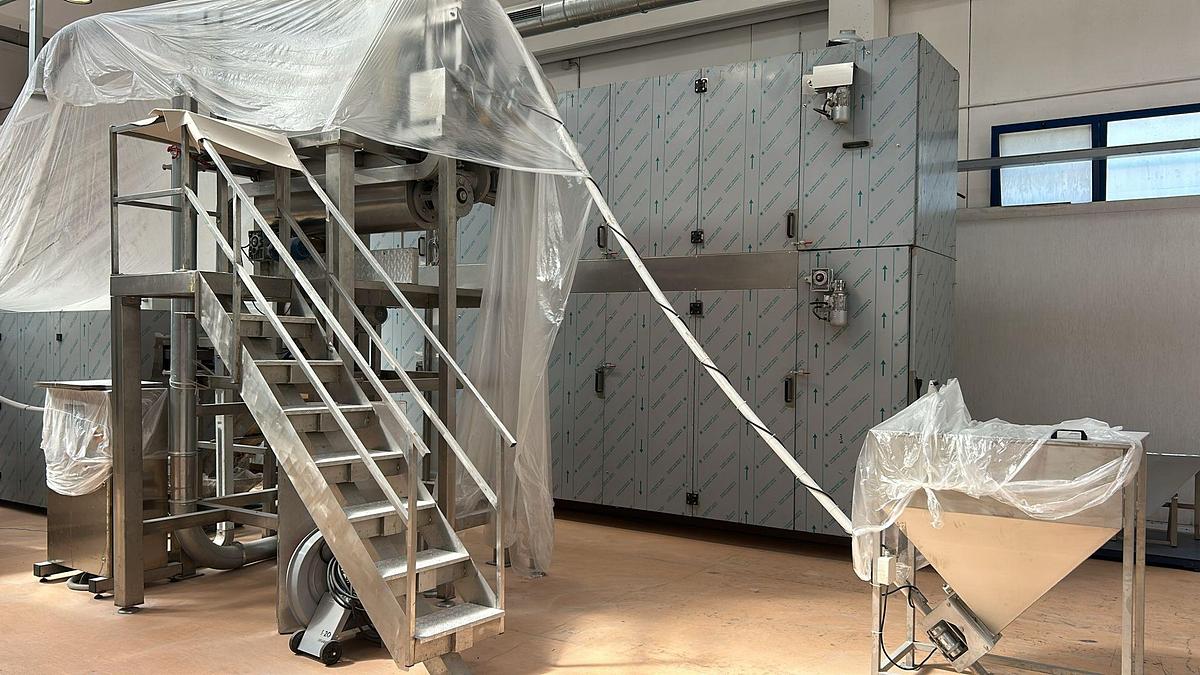

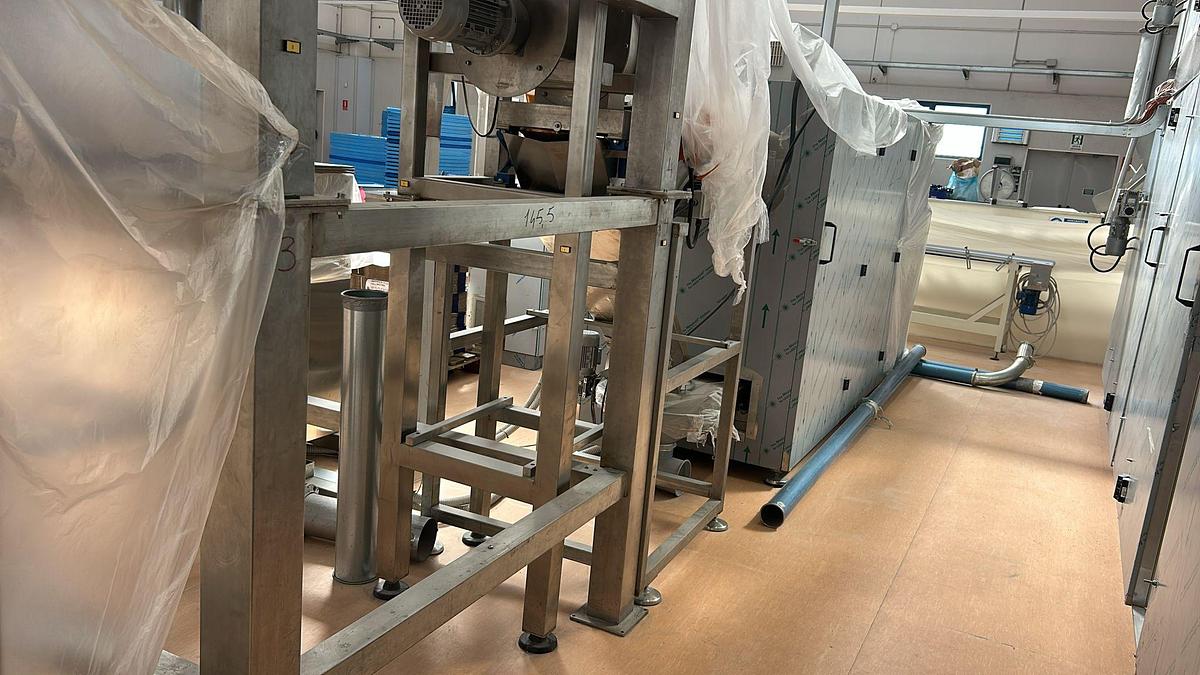

LINE CONFIGURATION

The line in question consists of the following components:

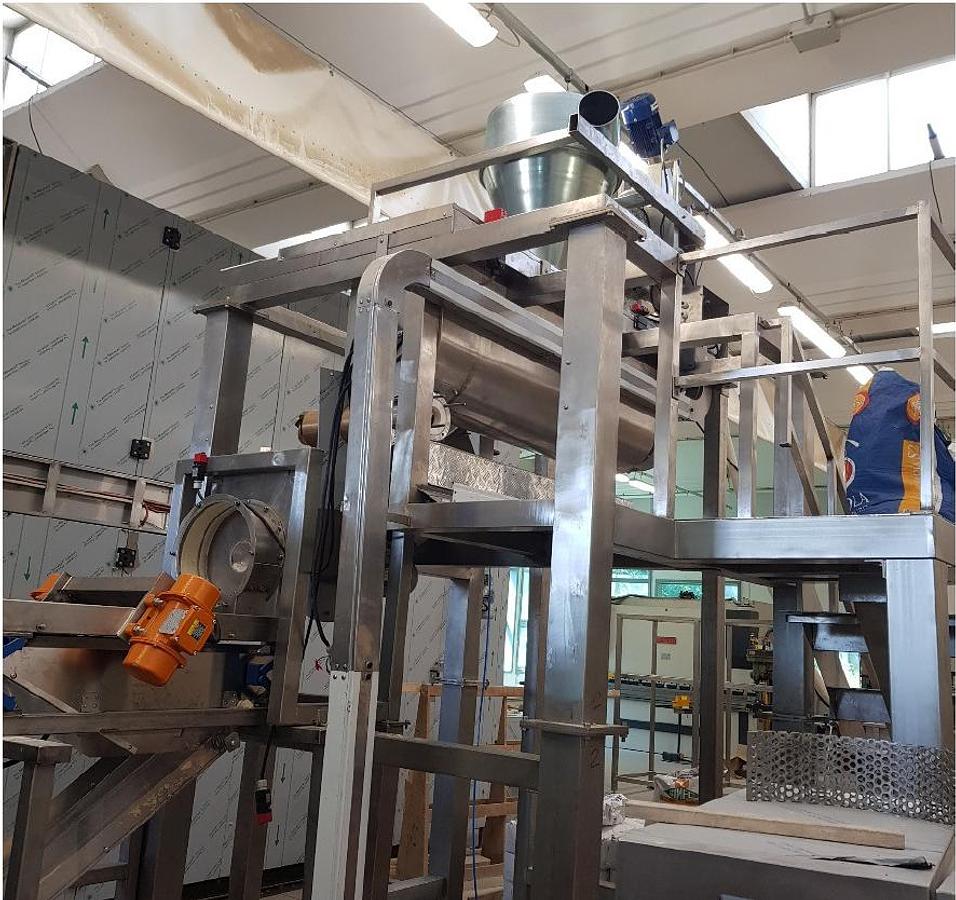

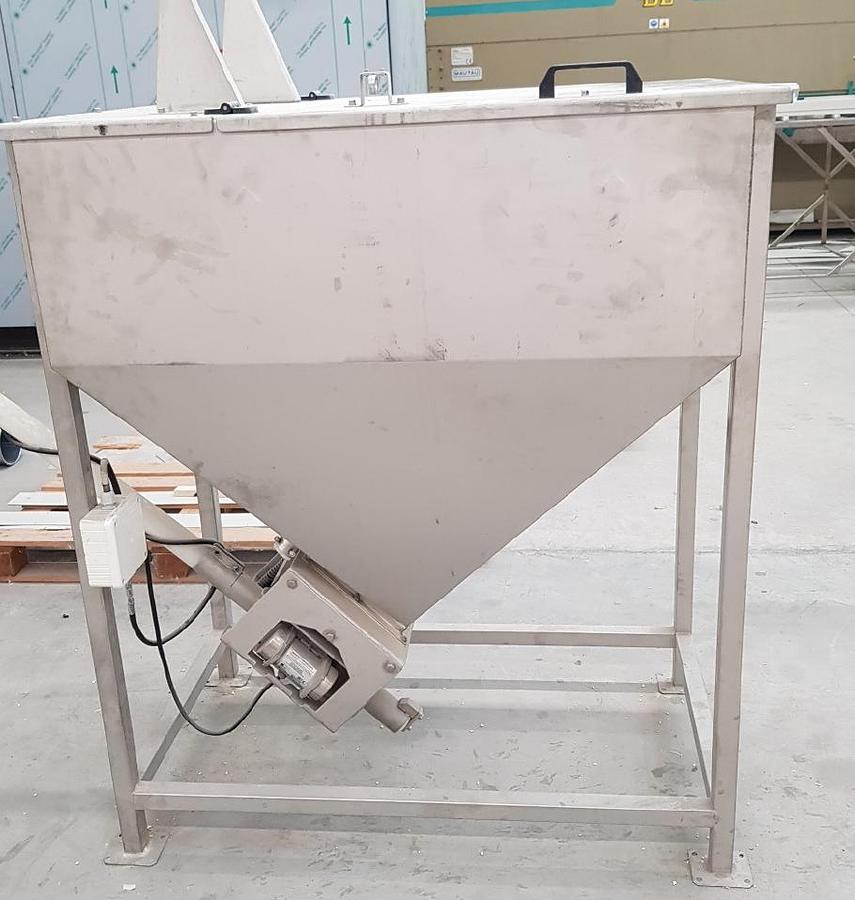

• Semolina loading hopper with vibrator and feed screw

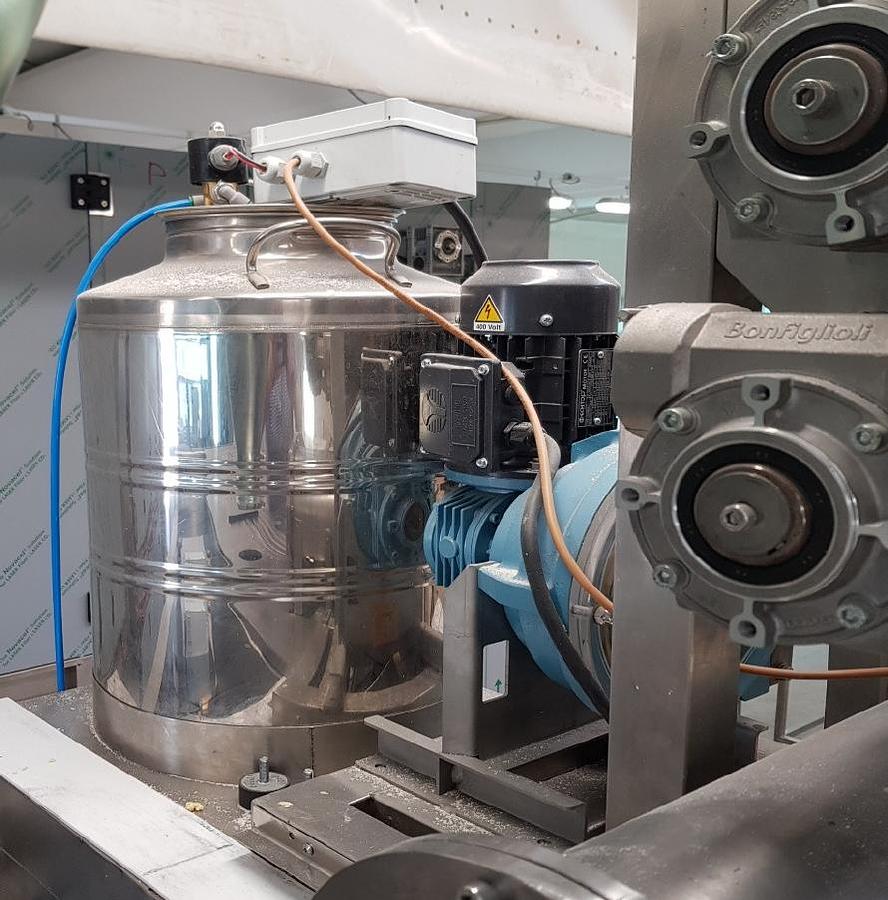

• Semolina pre-mixing system

• P300 press

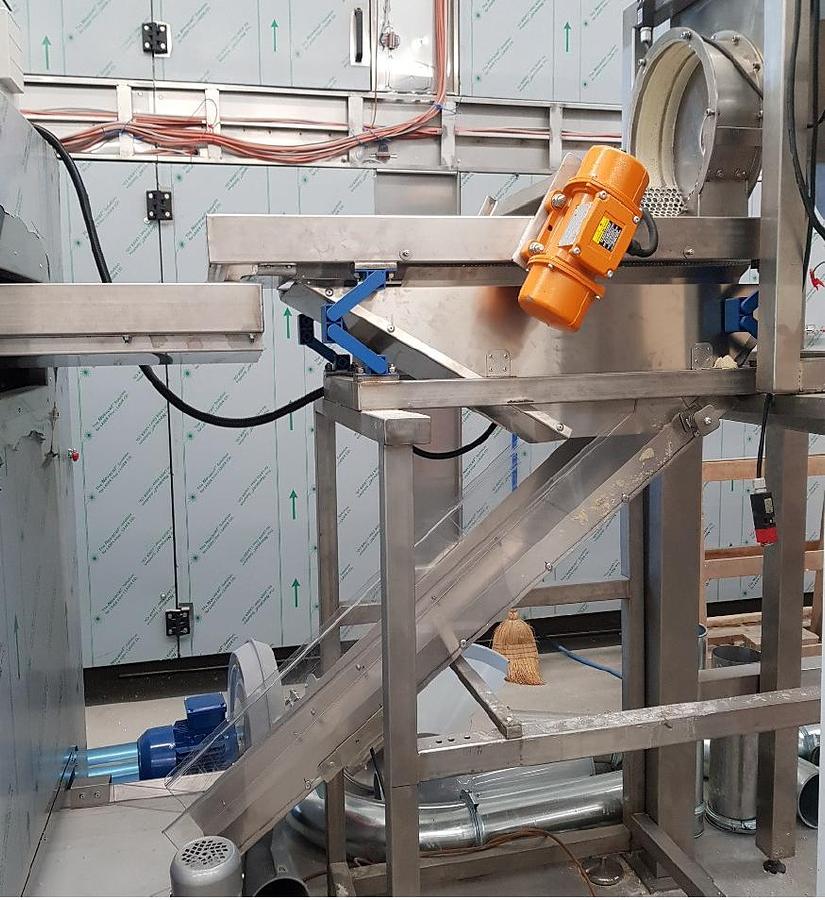

• Vibrating conveyor at press outlet for loading the shaker

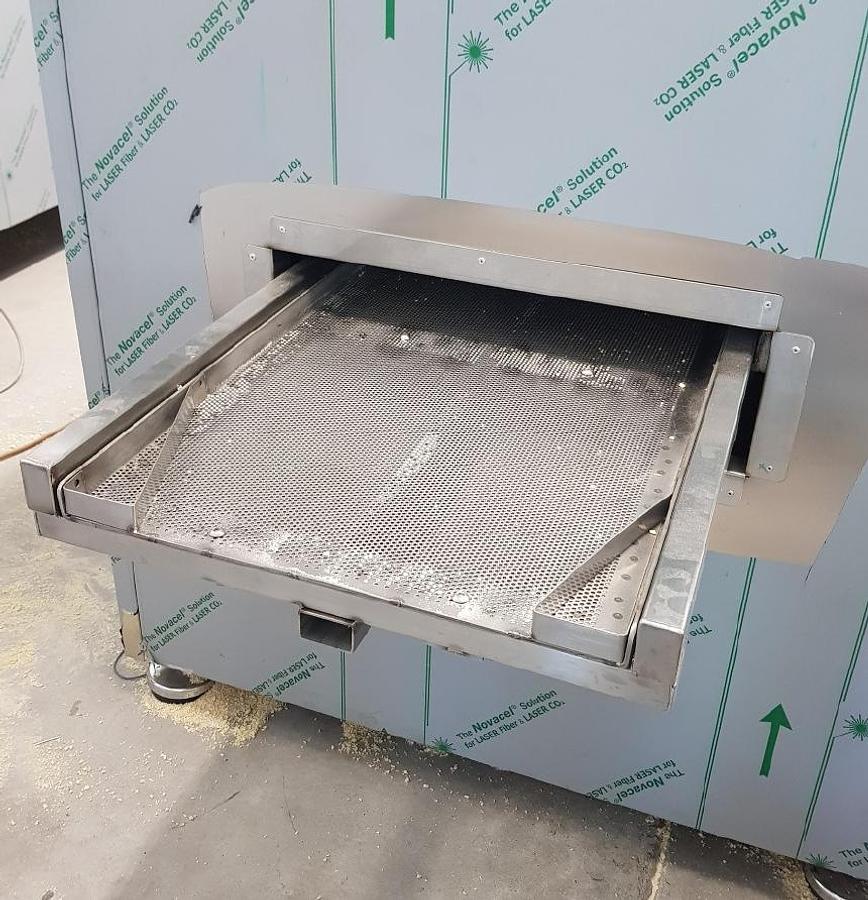

• Shaker unit with semolina recovery system

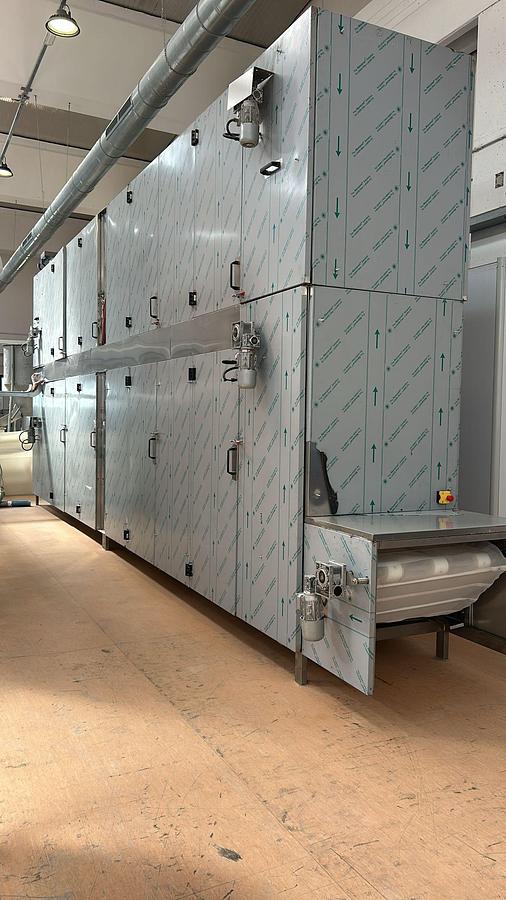

CONTINUOUS DRYER EC300 – Pauletto S.n.c.

Production: 300 kg/h

Power supply: 400 V, 50 Hz

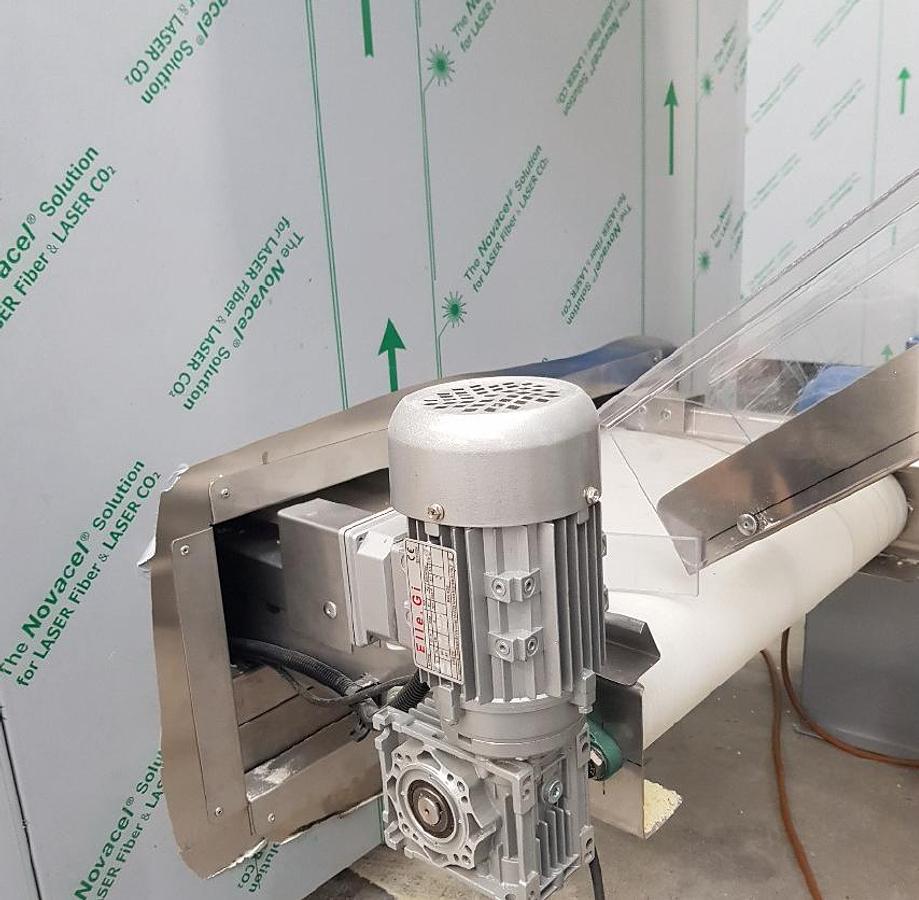

The dryer consists of a pneumatic conveying system from the shaker outlet and No. 05 belts with speed control via inverter.

Each belt is equipped with:

• Air recirculation fans

• Electric heating elements

• Sensors for air temperature and relative humidity control

• Fan for pneumatic product conveying
