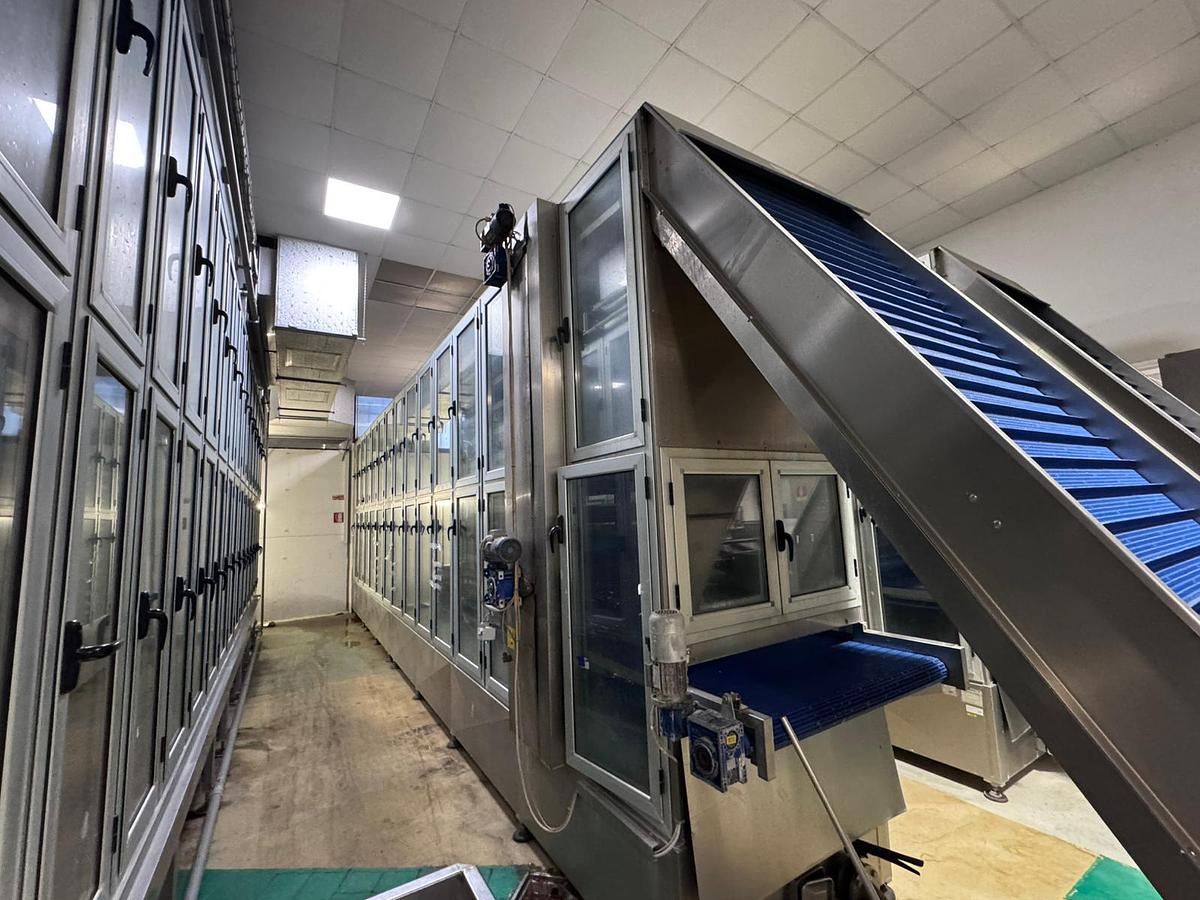

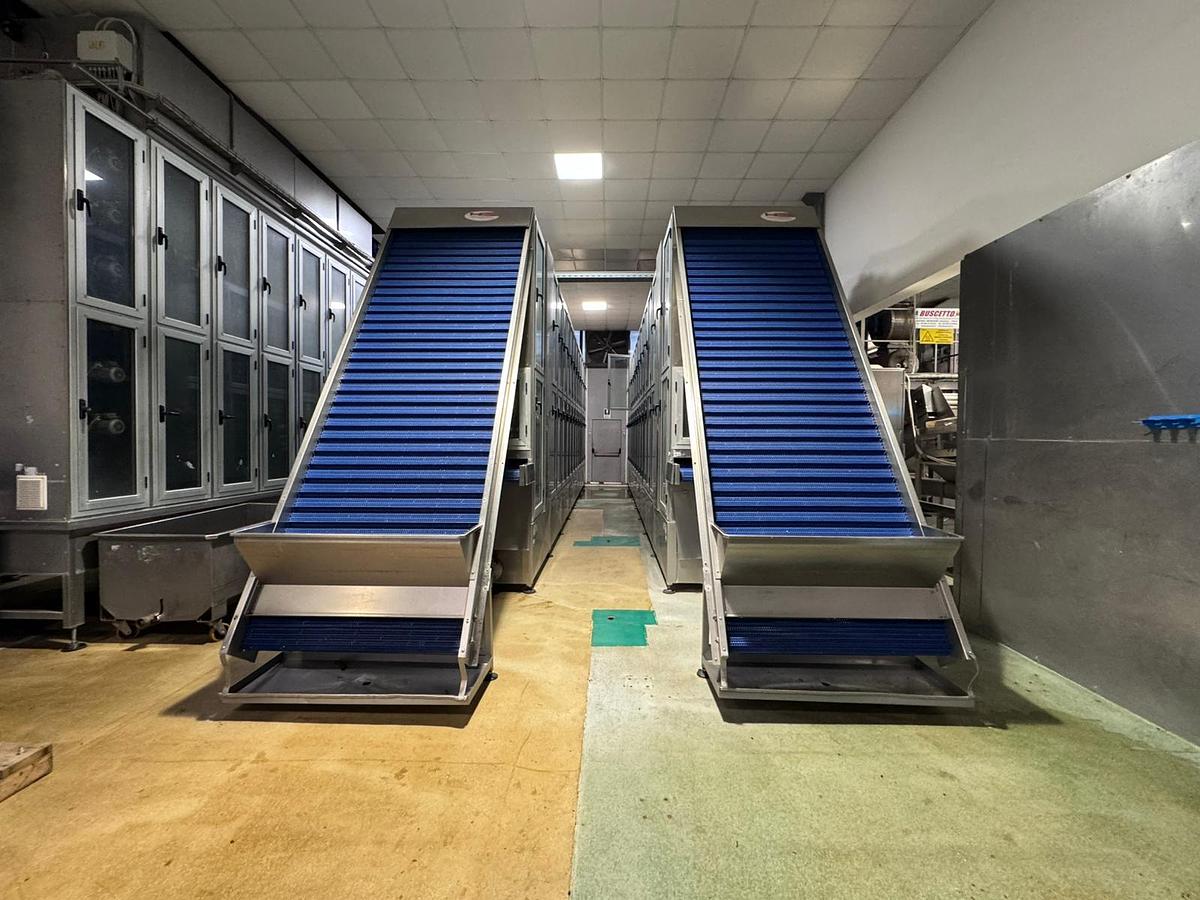

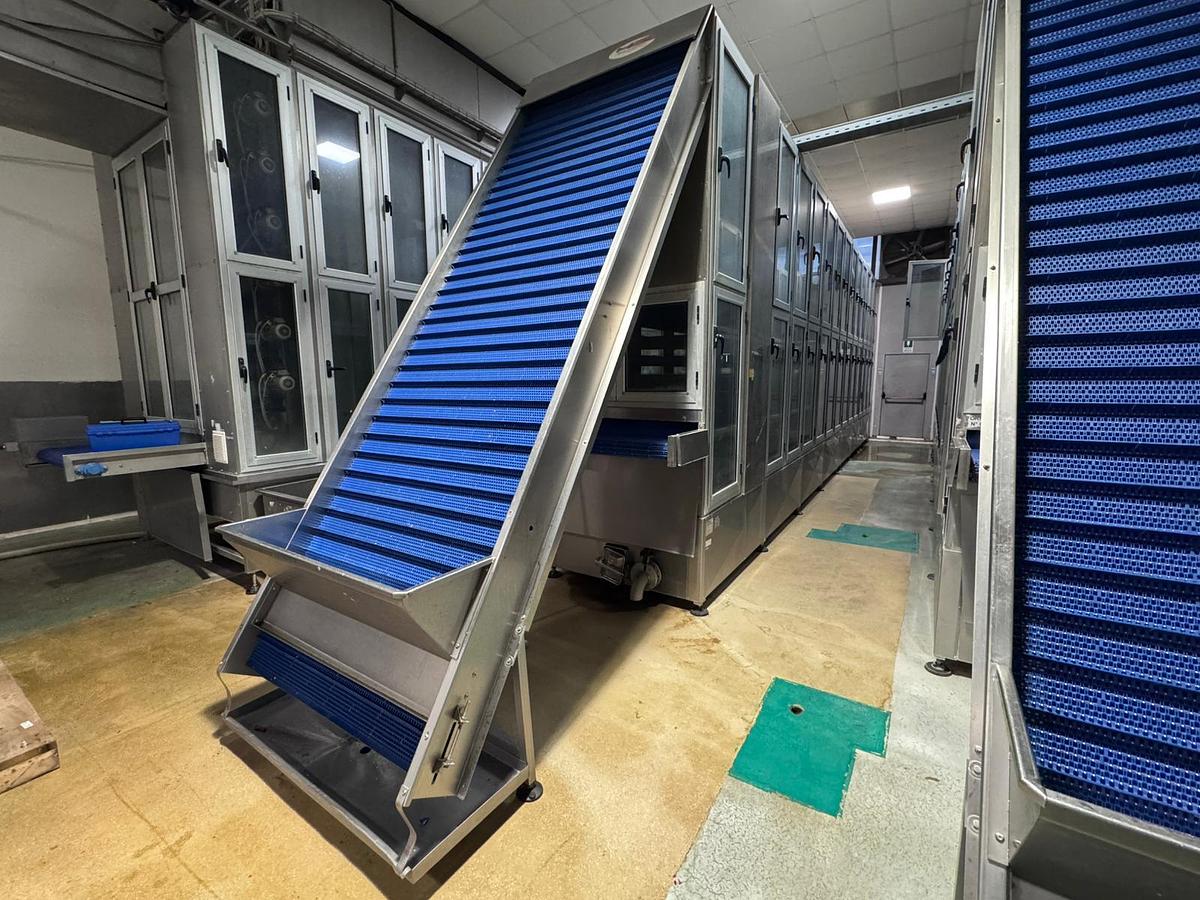

2011 TECNOFRUTTA L11P12 Stainless Steel Continuous Multi-Belt Food Dryer

TECNOFRUTTA L11P12 continuous industrial drying machine, manufactured in 2011 and designed for the dehydration of fruit, vegetables and other food products.

The machine uses forced hot air circulation generated by a fan system for the dehydration process.

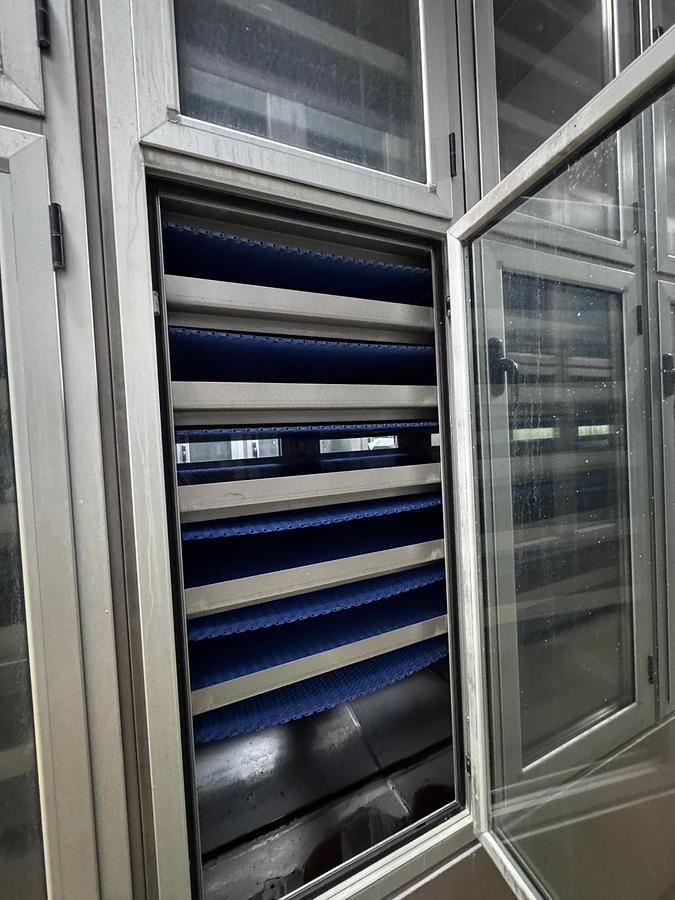

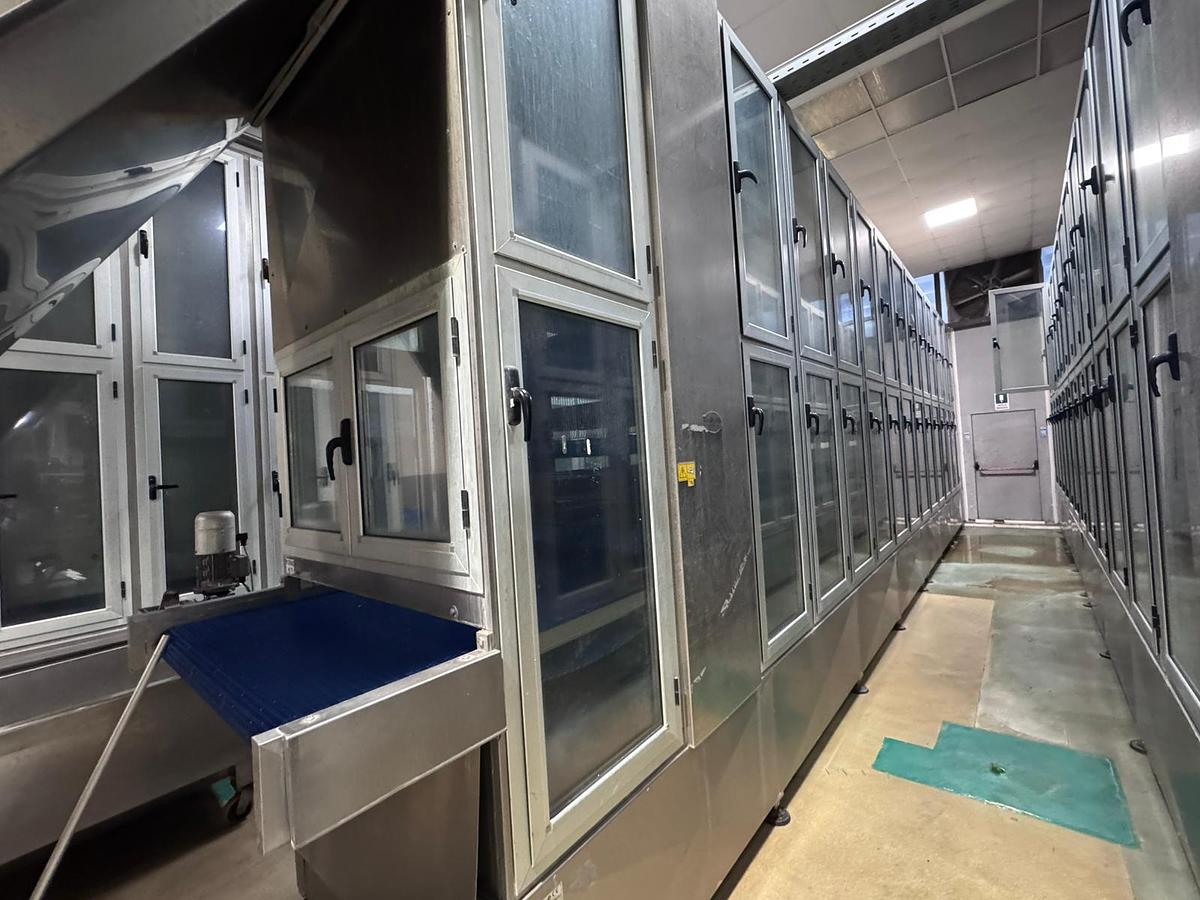

The equipment features an AISI 304 stainless steel supporting structure, modular thermoplastic conveyor belts suitable for food contact, inspection doors and an automatic belt washing system.

The drying system incorporates air circulation fans, heat recovery components and a heating battery designed for hot water or steam.

The machine is equipped with an electronic control system featuring an interactive touchscreen display for operating parameter management, program selection and alarm monitoring.

Technical Specifications

• Manufacturer: TECNOFRUTTA S.r.l.
• Model: L11P12
• Manufacturing Year: 2011
• Serial Number: 0154
• Electrical Supply: 380 V
• Total Installed Electrical Power: 39 kW
• Drying Process Electrical Power: 33.2 kW
• Washing Process Electrical Power: 7.1 kW
• Supporting Structure: AISI 304 Stainless Steel

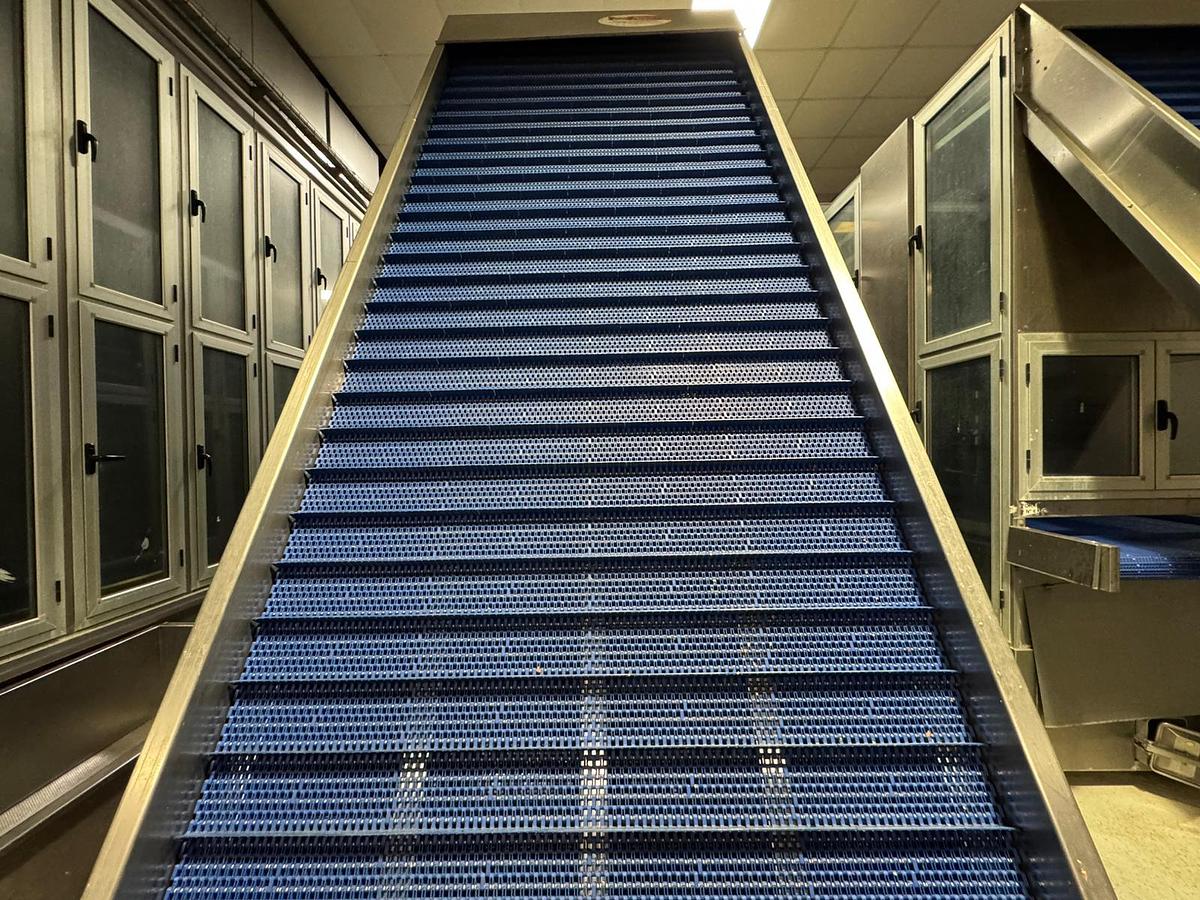

• Conveyor System: Modular Thermoplastic Belts
• Control System: Interactive Touchscreen
• Operating Modes: Automatic and Manual
• Heat Recovery System: Described in Manufacturer's Manual
• Automatic Belt Washing: Described in Manufacturer's Manual
• CE Marking: Present on Identification Plate

Applications

The manufacturer's documentation identifies the machine as designed for the drying of:

• Tomatoes
• Cherry tomatoes
• Eggplants
• Zucchini
• Fruit
• Mushrooms
• Other compatible food products

Documentation

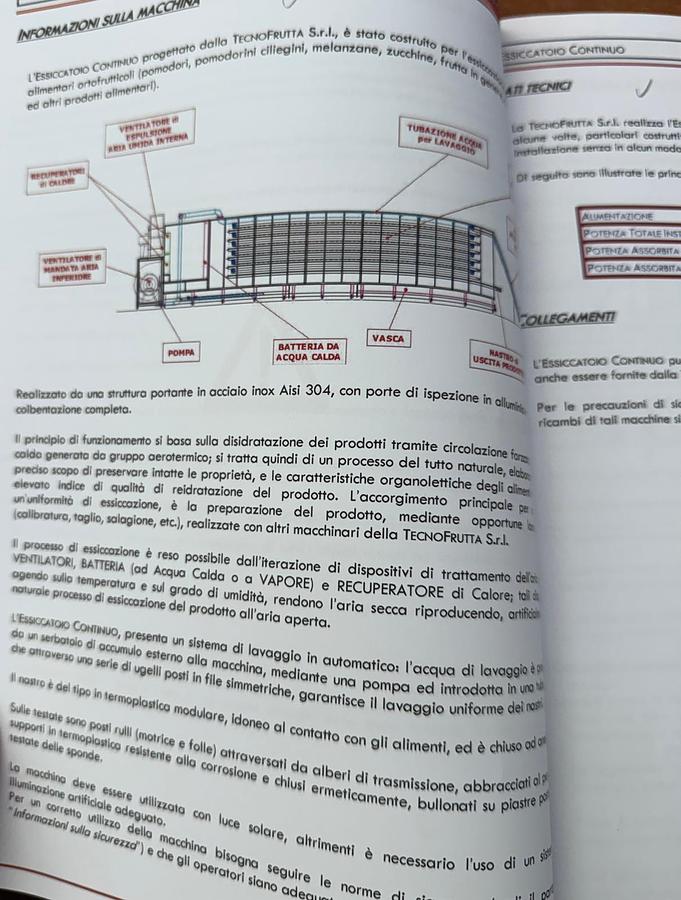

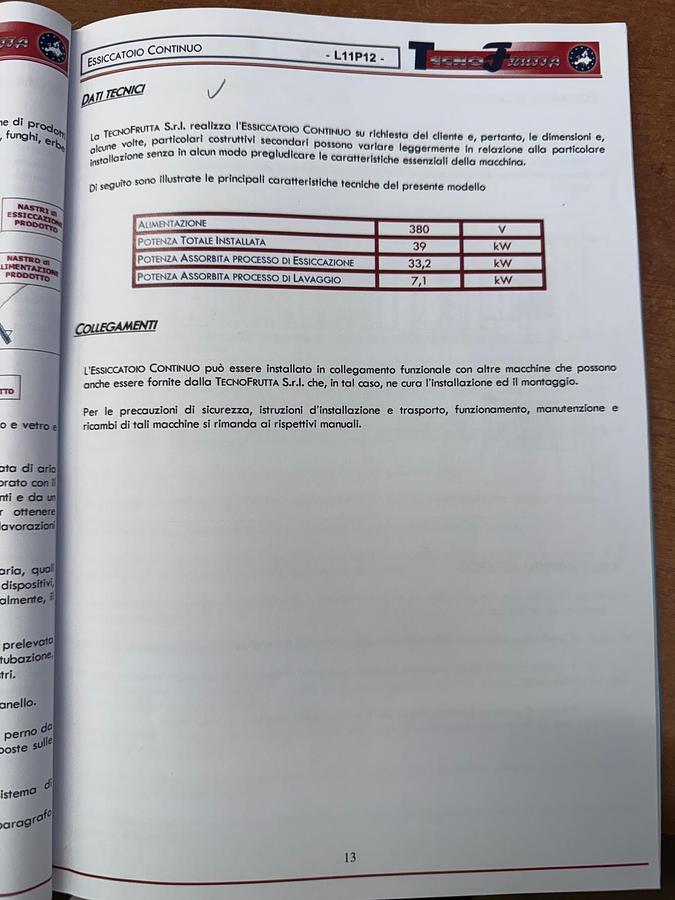

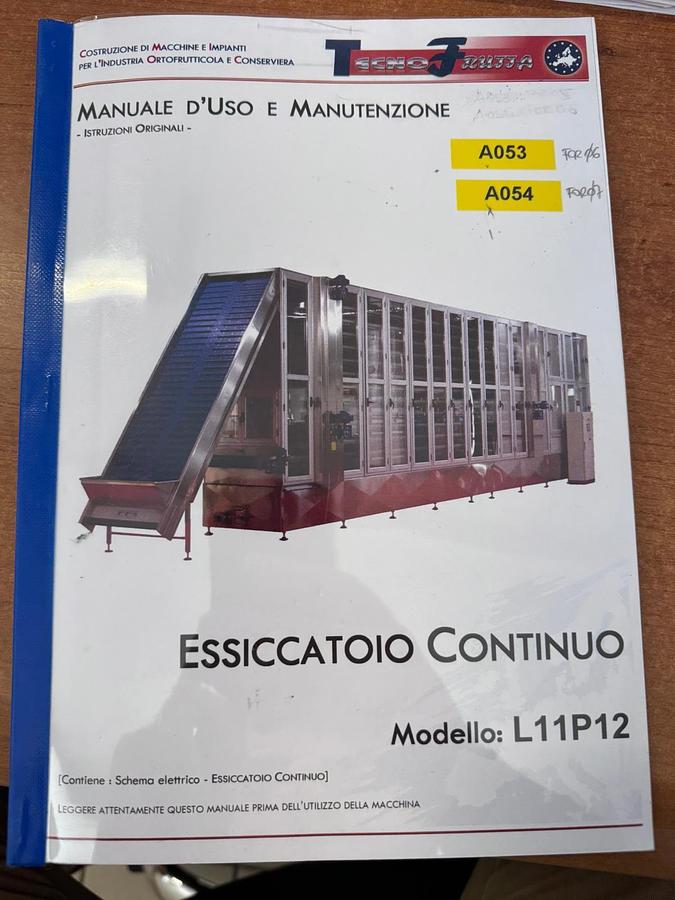

Original TECNOFRUTTA operating and maintenance manual available, including technical information and machine operating instructions.

Important: Specifications are based on the manufacturer's identification plate and original documentation. Current operational condition, production capacity, dimensions, completeness and functionality of individual systems have not been independently verified.
